Vacuum Fittings - ISO Series



ISO Single Wall Clamp
Model No. Material Suitable Flange A B C
ISC-AL-63
 AL
ISO63
22.5
M8
35
AL
ISO80
22.5
M8
35
AL
ISO100
22.5
M8
35
ISC-AL-160
 AL
ISO160
23
M10
40
AL
ISO200
23
M10
40
AL
ISO250
23
M10
40
ISC-AL-320 AL ISO320 36.5 M12 55
AL ISO400 36.5 M12 55
AL ISO500 36.5 M12 55



ISO Single Wall Clamp - Steel
(Zine Plating)
Model No. Suitable Flange A B C
ISC-SZ-63
ISO63
22.5
M8
35
ISO80
22.5
M8
35
ISO100
22.5
M8
35
ISC-SZ-160
ISO160
23
M10
40
ISO200
23
M10
40
ISO250
23
M10
40
ISC-SZ-320 ISO320 36.5 M12 55
ISO400 36.5 M12 55
ISO500 36.5 M12 55
ISC-SZ-630 ISO630 41.5 M12 60



ISO Single Wall Clamp
Model No. Material Suitable Flange A B C
ISC-63
 SUS304
ISO63
22.5
M8
35
SUS304
ISO80
22.5
M8
35
SUS304
ISO100
22.5
M8
35
ISC-160
 SUS304
ISO160
23
M10
40
SUS304
ISO200
23
M10
40
SUS304
ISO250
23
M10
40
ISC-320 SUS304 ISO320 36.5 M12 55
SUS304 ISO400 36.5 M12 55
SUS304 ISO500 36.5 M12 55
ISC-630 SUS304 ISO630 41.5 M12 60



ISO Double Wall Clamp
Model No. Material Suitable Flange A B Q'TY
IDC-AL-63
 AL
ISO63
45

M8

4
AL
ISO80
45
M8
 4
AL
ISO100
45
M8
 4
IDC-AL-160
 AL
ISO160
45
M8
 4
AL
ISO200
45
M8
 6
AL
ISO250
45
M8
 6
IDC-AL-320 AL ISO320 45 M8 8
AL ISO400 45 M8 8
AL ISO500 45 M8 12



ISO Double Claw Clamp - Steel
(Zine Plated)
Model No. Suitable Flange A B Q'TY
IDC-SZ-63/250
ISO63
60
M10
 4
ISO80
60
M10
 4
ISO100
60
M10
 4
ISO160
60
M10
 4
ISO200
60
M10
 6
ISO250
60
M10
 6
IDC-SZ-320/500
ISO320
76
M12
 8
ISO400
76
M12
 8
ISO500
76
M12
 12
IDC-SZ-630
ISO630
86
M12
 12



ISO Double Claw Clamp
Model No. Material Suitable Flange A B Q'TY
IDC-63/250
 SUS316
ISO63
60
M10
 4
SUS316
ISO80
60
M10
 4
SUS316
ISO100
60
M10
 4
SUS316
ISO160
60
M10
 4
SUS316
ISO200
60
M10
 6
SUS316
ISO250
60
M10
 6
IDC-320/500
 SUS316
ISO320
76
M12
 8
SUS316
ISO400
76
M12
 8
SUS316
ISO500
76
M12
 12
IDC-630
 SUS316
ISO630
86
M12
 12



ISO Outer Ring, Centering Rings,
Viton O'ring - USA

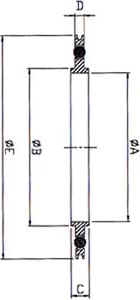

Model No. Material A B C D E O'ring (AS-568)
IOCR-V63
 SUS304
67
69.6
8
3.9
91
AS-336
IOCR-V80
 SUS304
80
82.6
8
3.9
104
AS-340
IOCR-V100
 SUS304
100
101.6
8
3.9
123
AS-346
IOCR-V160
 SUS304
150
152.6
8
3.9
170
AS-361
IOCR-V200
 SUS304
210
212.6
8
3.9
234
AS-371
IOCR-V250
 SUS304
257.5
260.4
8
3.9
285
AS-378
IOCR-V320
 SUS304
312
317.3
12
5.6
340
AS-454
IOCR-V400
 SUS304
394
399.2
12
5.6
416
AS-462
IOCR-V500
 SUS304
494
500.2
12
5.6
555
AS-470
Model No. Material A B C D E O'ring (AS-568)
IOCR-AL-V63
 AL
67
69.6
8
3.9
91
AS-336
IOCR-AL-V80
 AL
80
82.6
8
3.9
104
AS-340
IOCR-AL-V100
 AL
100
101.6
8
3.9
123
AS-346
IOCR-AL-V160
 AL
150
152.6
8
3.9
170
AS-361
IOCR-AL-V200
 AL
210
212.6
8
3.9
234
AS-371
IOCR-AL-V250
 AL
257.5
260.4
8
3.9
285
AS-378
IOCR-AL-V320
 AL
312
317.3
12
5.6
340
AS-454
IOCR-AL-V400
 AL
394
399.2
12
5.6
416
AS-462
IOCR-AL-V500
 AL
494
500.2
12
5.6
555
AS-470

          Aluminum outer, S.S. or Aluminum inner.

ISO Outer Ring, Centering Rings,
NBR O'ring - USA
Model No. Material A B C D E O'ring (AS-568)
IOCR-N63
 SUS304
67
69.6
8
3.9
91
AS-336
IOCR-N80
 SUS304
80
82.6
8
3.9
104
AS-340
IOCR-N100
 SUS304
100
101.6
8
3.9
123
AS-346
IOCR-N160
 SUS304
150
152.6
8
3.9
170
AS-361
IOCR-N200
 SUS304
210
212.6
8
3.9
234
AS-371
IOCR-N250
 SUS304
257.5
260.4
8
3.9
285
AS-378
IOCR-N320
 SUS304
312
317.3
12
5.6
340
AS-454
IOCR-N400
 SUS304
394
399.2
12
5.6
416
AS-462
IOCR-N500
 SUS304
494
500.2
12
5.6
555
AS-470
Model No. Material A B C D E O'ring (AS-568)
IOCR-AL-N63
 AL
67
69.6
8
3.9
91
AS-336
IOCR-AL-N80
 AL
80
82.6
8
3.9
104
AS-340
IOCR-AL-N100
 AL
100
101.6
8
3.9
123
AS-346
IOCR-AL-N160
 AL
150
152.6
8
3.9
170
AS-361
IOCR-AL-N200
 AL
210
212.6
8
3.9
234
AS-371
IOCR-AL-N250
 AL
257.5
260.4
8
3.9
285
AS-378
IOCR-AL-N320
 AL
312
317.3
12
5.6
340
AS-454
IOCR-AL-N400
 AL
394
399.2
12
5.6
416
AS-462
IOCR-AL-N500
 AL
494
500.2
12
5.6
555
AS-470

          Aluminum outer, S.S. or Aluminum inner.
