Vacuum Fittings - ISO Series


ISO Centering Rings, Viton O'ring - USA
Model No. Material A B C D O'ring
ICR-V63
SUS304 67 69.5 8 3.9
AS-336
ICR-V80
SUS304 80 82.6 8 3.9
AS-341
ICR-V100
SUS304 100 101.6 8 3.9
AS-347
ICR-V160
SUS304 150 152.6 8 3.9
AS-362
ICR-V200
SUS304 210 212.6 8 3.9
AS-371
ICR-V250
SUS304 257.5 260.4 8 3.9
AS-377
ICR-V320
SUS304 312 317.3 12 5.6
AS-454
ICR-V400
SUS304 394 399.2 12 5.6
AS-462
ICR-V500
SUS304 494 500.2 12 5.6
AS-469
Model No. Material A B C D O'ring
ICR-AL-V63
AL 67 69.5 8 3.9
AS-336
ICR-AL-V80
AL 80 82.6 8 3.9
AS-341
ICR-AL-V100
AL 100 101.6 8 3.9
AS-347
ICR-AL-V160
AL 150 152.6 8 3.9
AS-362
ICR-AL-V200
AL 210 212.6 8 3.9
AS-371
ICR-AL-V250
AL 257.5 260.4 8 3.9
AS-377
ICR-AL-V320
AL 312 317.3 12 5.6
AS-454
ICR-AL-V400
AL 394 399.2 12 5.6
AS-462
ICR-AL-V500
AL 494 500.2 12 5.6
AS-469


ISO Centering Rings, NBR O'ring - USA
Model No. Material A B C D O'ring
ICR-N63
SUS304 67 69.5 8 3.9
AS-336
ICR-N80
SUS304 80 82.6 8 3.9
AS-341
ICR-N100
SUS304 100 101.6 8 3.9
AS-347
ICR-N160
SUS304 150 152.6 8 3.9
AS-362
ICR-N200
SUS304 210 212.6 8 3.9
AS-371
ICR-N250
SUS304 257.5 260.4 8 3.9
AS-377
ICR-N320
SUS304 312 317.3 12 5.6
AS-454
ICR-N400
SUS304 394 399.2 12 5.6
AS-462
ICR-N500
SUS304 494 500.2 12 5.6
AS-469
Model No. Material A B C D O'ring
ICR-AL-N63
AL 67 69.5 8 3.9
AS-336
ICR-AL-N80
AL 80 82.6 8 3.9
AS-341
ICR-AL-N100
AL 100 101.6 8 3.9
AS-347
ICR-AL-N160
AL 150 152.6 8 3.9
AS-362
ICR-AL-N200
AL 210 212.6 8 3.9
AS-371
ICR-AL-N250
AL 257.5 260.4 8 3.9
AS-377
ICR-AL-N320
AL 312 317.3 12 5.6
AS-454
ICR-AL-N400
AL 394 399.2 12 5.6
AS-462
ICR-AL-N500
AL 494 500.2 12 5.6
AS-469

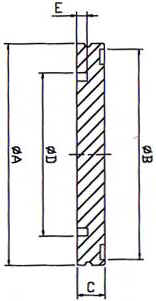

ISO Blank Flange
Model No. Material A B C D E
IBL-63
 SUS304
95
90
12
70
4.5
IBL-80
 SUS304
110
105
12
83
4.5
IBL-100
 SUS304
130
125
12
102
4.5
IBL-160
 SUS304
180
175
12
153
4.5
IBL-200
 SUS304
240
235
12
213
4.5
IBL-250
 SUS304
290
285
12
261
4.5
IBL-320
 SUS304
370
365
17
318
4.5
IBL-400
 SUS304
450
445
17
400
4.5
IBL-500
 SUS304
550
545
17
501
4.5

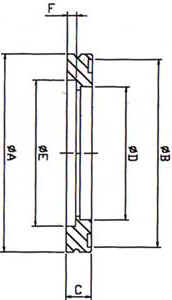

ISO Bored Flange
Model No. Material A B C D E F
IBF-63
 SUS304
95
90
12
63.7
70
4.5
IBF-80
 SUS304
110
105
12
76.4
83
4.5
IBF-100
 SUS304
130
125
12
101.8
102
4.5
IBF-160
 SUS304
180
175
12
152.9
153
4.5
IBF-200
 SUS304
240
235
12
203.7
213
4.5
IBF-250
 SUS304
290
285
12
254.5
261
4.5
IBF-320
 SUS304
370
365
17
305.3
318
4.5
IBF-400
 SUS304
450
445
17
406.9
400
4.5
IBF-500
 SUS304
550
545
17
508.8
501
4.5


ISO Bolted Flange
Model No. Material A B C D E P.C.D.
IBTF-63
 SUS304 130 70 12 63.7 9x4 110
IBTF-80
 SUS304 145 83 12 76.4 9x8 125
IBTF-100
 SUS304 165 102 12 101.8 9x8 145
IBTF-160
 SUS304 225 153 16 152.9 11x8 200
IBTF-200
 SUS304 285 213 16 203.7 11x12 260
IBTF-250
 SUS304 335 261 16 254.5 11x12 310
IBTF-320
 SUS304 425 318 20 305.3 14x12 395
IBTF-400
 SUS304 510 400 20 406.9 14x16 480
IBTF-500
 SUS304 510 400 20 406.9 14x16 480


ISO Rotatable Bolt Rings
Model No. Material A B C D P.C.D.
IRBR-63 SUS304 130 98.5 12 9x4 110
IRBR-80 SUS304 145 113.5 12 9x8 125
IRBR-100 SUS304 165 133.5 12 9x8 145
IRBR-160 SUS304 225 185.7 16 11x8 200
IRBR-200 SUS304 285 245.7 16 11x12 260
IRBR-250 SUS304 335 295.7 16 11x12 310
IRBR-320 SUS304 425 375.8 20 14x12 395
IRBR-400 SUS304 510 458.8 20 14x16 480
IRBR-500 SUS304 610 558.8 20 14x16 580


ISO Split Retainer Rings
Model No. Material A Fit Flange
ISR-63 SUS304 3 ISO63
ISR-80 SUS304 3 ISO80
ISR-100 SUS304 3 ISO100
ISR-160 SUS304 5 ISO160
ISR-200 SUS304 5 ISO200
ISR-250 SUS304 5 ISO250
ISR-320 SUS304 5 ISO320
ISR-400 SUS304 8 ISO400
ISR-500 SUS304 8 ISO500
