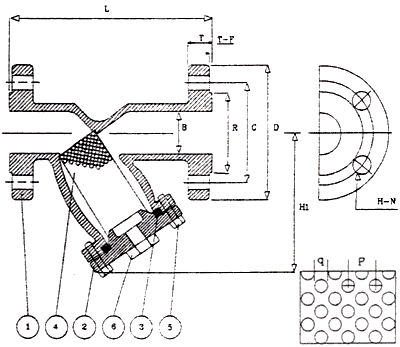

Y-Type Strainer Flanged PN16
YF-2
NO
DESCRITION
CAST IRON
WCB
CF8
CF8M
1
BODY
CAST IRON
A216-WCB
A351-CF8
A351-CF8M
2
BODY CAP
CAST IRON
A216-WCB
A351-CF8
A351-CF8M
3
GASKET
ASBESTOS
ASBESTOS
ASBESTOS
ASBESTOS
4
SCREEN
SUS304
SUS304
SUS304
SUS316
5
GLAND BOLT
SS41
SS41
SUS304
SUS316
6
DRAIN PLUG
CAST IRON
CAST IRON
SUS304
SUS316
Screen Speification
NOMINAL SIZE
PERFORATION
PITCH OF HOLES
SCREEN THCKNESS
1/2 TO 2
1.0
2.0
0.4
21/2 TO 6
2.0
3.5
0.5
8 TO 10
3.0
4.5
0.6
4.0
8
0.8
5.0
9
0.8
STRAING SIZE
DRAIN PLUG THREAD SPECIFICATION
1/2 TO 1
NIL
11/4 TO 10
1/2 BSPT
SIZE
1/2
3/4
1
11/2
11/4
2
21/2
3
4
5
6
8
10
12
DN15
DN20
DN25
DN32
DN40
DN50
DN65
DN80
DN100
DN125
DN150
DN200
DN250
DN300
B
15
20
25
32
40
50
65
80
100
125
150
200
250
300
D
95
105
115
140
150
165
185
200
220
250
285
340
405
460
T
14
16
16
16
16
18
18
20
20
22
22
24
26
28
R
45
58
68
78
88
102
122
138
158
188
212
268
320
370
F
1
1
1
2
2
2
2
2
2
2
2
2
2
3
C
65
75
85
100
110
125
145
160
180
210
240
295
355
410
H
14
14
14
18
18
18
18
18
18
18
22
22
26
26
N
4
4
4
4
4
4
4
8
8
8
8
12
12
16
H1
82
91
95
119
128
167
183
200
230
280
346
450
500
600
L
130
150
160
180
200
230
290
310
350
400
480
600
730
810
KG
2.4
3
4.5
6.5
8
11.6
16.8
18.4
23
37
48
98
145
250
