3W-4F (ANSI-150LB)

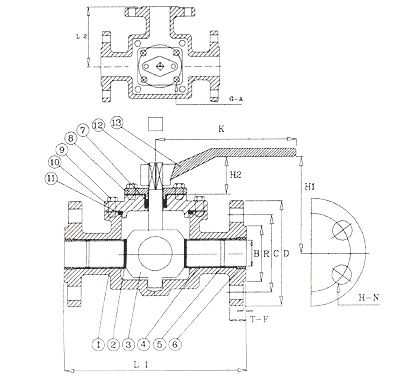

NO. PARTS MATERIAL 1 BODY CAST IRON WCB ASTM A351 CF8 ASTM A351 CF8M 2 BALL SEAT TEFLON TEFLON TEFLON TEFLON 3 BALL WITH STEM CF8 CF8 CF8 CF8 4 SEAT RING HOLDER CAST IRON CAST IRON CF8 CF8 5 O RING O RING O RING O RING O RING 6 RETAINER CAST IRON CAST IRON CF8 CF8 7 STEM PACKING TEFLON TEFLON TEFLON TEFLON 8 GLAND FLANGED CAST IRON CAST IRON CF8 CF8M 9 GLAND BOLT SS41 SS41 SUS304 SUS316 10 TOP COVER CAST IRON CAST IRON CF8 CF8M 11 JOINT GASKET TEFLON TEFLON TEFLON TEFLON 12 STEM CF8 CF8 CF8 CF8 13 HANDLE CAST IRON CAST IRON CAST IRON CAST IRON (ANSI-150LB) VALVE SIZE  L1 L2 B D T R F C H N H1 H2 K A G KG MM INCH 25 1 180 90 24 108 15 60 1 79.5 15 4 103 30 75 12 M6 50 9.5 40 11/2 200 100 39 127 18 80 2 98.5 15 4 133 50 235 16 M8 70 13 50 2 220 110 49 152 19 92 2 120.5 19 4 136 50 235 16 M10 70 17 65 21/2 250 125 63 178 23 115 2 139.5 19 4 146 53 340 19.5 M10 102 27 80 3 260 130 74 190 24 127 2 152.5 19 4 156 53 340 19.5 M10 102 29 100 4 340 170 100 229 24 165 2 190.5 19 8 172 50 340 19.5 M10 102 45 150 6 455 227.5 150 279 26 216 2 241.5 22 8     510 25 M12 125   UNIT:M/M
